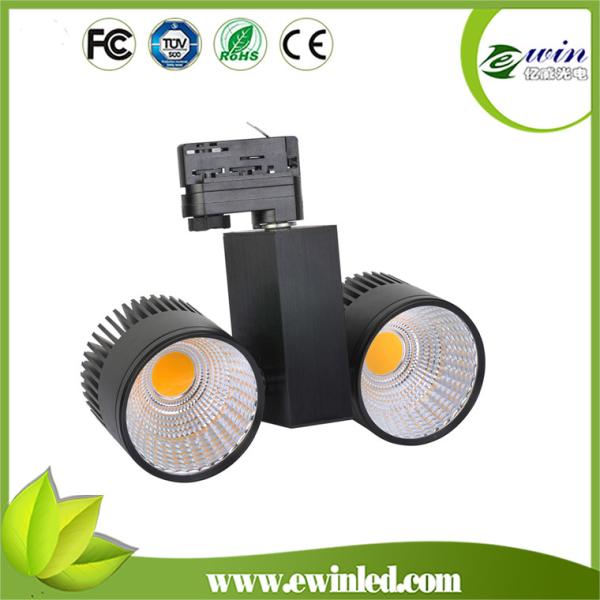

Independently Design Ceramic PCB 2*20W COB LED Track light

Shenzhen Ewin Lighting Technology CO., Limited
Contact Now

Independently Design Ceramic PCB 2*20W COB LED Track light

Place of Origin : china

Brand Name : EWIN

Certification : CE ROHS

Model Number : EW-TL-COB-2*20W

Light Source : LED

LED Light Source : cob chips

Warranty(Years) : 3

Input Voltage(V) : 100-277

Lamp Power(W) : 46

Lamp Luminous Flux(lm) : 4400-5000

Lamp Luminous Efficiency(lm/w) : 120

CRI (Ra>) : 82

Color Temperature(CCT) : Pure White

Working Temperature(℃) : -40 - 45

Working Lifetime(Hour) : 50000

Lamp Body Material : Aluminum

color of housing : white black aluminum

power factor : 0.90-0.98

power efficiency : 0.85

track adaptor : 2-way 3-way 4-way

SDCM : <4

Frequency range : 50-60Hz

beam angle : 30 or 50 degree

Item Type : Track Lights

MOQ : 10pcs

Price : 12-72USD

Packaging Details : Box for each:280*125*250mm. Carton for 6 pcs; 62*32*28cm.

Delivery Time : usually 7-10 working days

Payment Terms : T/T, Western Union

Supply Ability : 5000PCS/Month

Contact Now

Independently Design Ceramic PCB 2*20W COB LED Track light

DescriptionBrand options Voltage PF CRI Beam


Dimension
mm

Netweight

10W LED COB Track light

Cree/Bridelux/
Citizen/Gosun

100-277vAC>0.9>8230°/50°

80×95(lamp)
132 ×85 ×
45(power box)

0.9kg

15W LED COB Track light

Cree/Bridelux/
Citizen/Gosun

100-277vAC>0.9>8230°/50°

102×122(lamp)
132 ×85 ×
45(power box)

1.20kg

20W LED COB Track light

Cree/Bridelux/
Citizen/Gosun

100-277vAC>0.9>8230°/50°

102×122(lamp)
132 ×85 ×
45(power box)

1.20kg

30W LED COB Track light

Cree/Bridelux/
Citizen/Gosun

100-277vAC>0.9>8230°/50°

122×137(lamp)
178 ×125 ×
60(power box)

1.75kg

40W LED COB Track light

Cree/Bridelux/
Citizen/Gosun

100-277vAC>0.9>8230°/50°

Φ122 ×130mm

1.70kg

1.40W COB LED Tracklight.
2.High output:110-120lm/w.
3.CRI>82.
4.MeanWell Driver is possible.

2*20W LED COB Tracklight

Products Features:
(1)LED Brand: Epistar / Cree.
(2)PCB: Ceramic material.
(3)New Design, CRI> 82.
(4)High output: 4400-5000lm.
(5)Beam Angle:30 or 50 degree.
(6)Warranty:3 years.
(7)Life span: 50,000+hrs.
(8)Certificate: CE, ROHS, SAA.
(9)Size: φ100*H115mm.
(10)Available Color: Warm &Natural &Pure White.
(11)Dimmable:Triac is optional.
(12)After-sale service:Free replacement.

Application:

(1) Public lighting: Hospital , Museum , Plaza etc.
(2) Commercial lighting: Mall , Hotel , Restaurant , Exhibition etc.

Data Sheet:

Part No. Color Power Voltage CCT Lumen Size
EW-TL-COB-2*20W-PW Pure White40W 100-277vAC 5900K-6300K 4800-5000lm φ100*H115mm
EW-TL-COB-2*20W-NW Natural White40W 100-277vAC 4000K-4500K 4600-4800lm φ100*H115mm
EW-TL-COB-2*20W-WW Warm White40W 100-277vAC 2900K-3300K 4400-4600lm φ100*H115mm

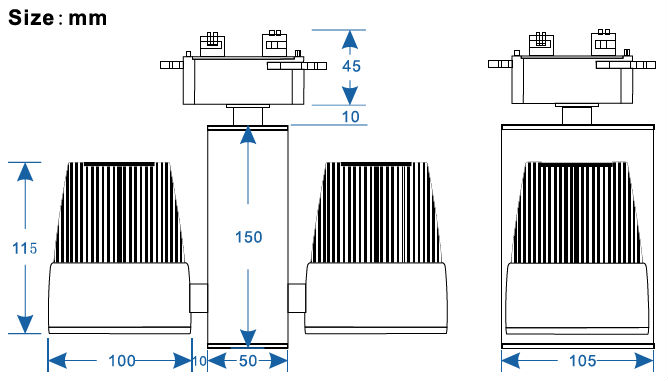

Dimension:



Independently Design Ceramic PCB 2*20W COB LED Track light




Test report: ( Note: The beam angle is only about 1/2 output of the all illuminated. )

Independently Design Ceramic PCB 2*20W COB LED Track light

More Pictures:


Independently Design Ceramic PCB 2*20W COB LED Track lightIndependently Design Ceramic PCB 2*20W COB LED Track lightIndependently Design Ceramic PCB 2*20W COB LED Track lightIndependently Design Ceramic PCB 2*20W COB LED Track lightPacking&shipping

EPE Cotton and hard board protect: Independently Design Ceramic PCB 2*20W COB LED Track lightn

more products

Independently Design Ceramic PCB 2*20W COB LED Track lightIndependently Design Ceramic PCB 2*20W COB LED Track light
Independently Design Ceramic PCB 2*20W COB LED Track lightIndependently Design Ceramic PCB 2*20W COB LED Track light
Independently Design Ceramic PCB 2*20W COB LED Track light
Independently Design Ceramic PCB 2*20W COB LED Track light

Packaging

Independently Design Ceramic PCB 2*20W COB LED Track lightIndependently Design Ceramic PCB 2*20W COB LED Track lightIndependently Design Ceramic PCB 2*20W COB LED Track lightIndependently Design Ceramic PCB 2*20W COB LED Track light

Services and Promise

Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your enquires influent English.

3. OEM & ODM are welcomed, OEM brand is available.

4. Distributor ship is offered for your unique desigh and some our current models.

5. Protection of your sales area, ideas of design and all your private information.

Our quality control:
* All products must go through five checks before manufacturing process.

* Raw material full check before production.

* Full check after every individual process finished.

* Full check after production half-done.

* 500 times on and off testing after production finished.

* Full check after production packed before shipping.
